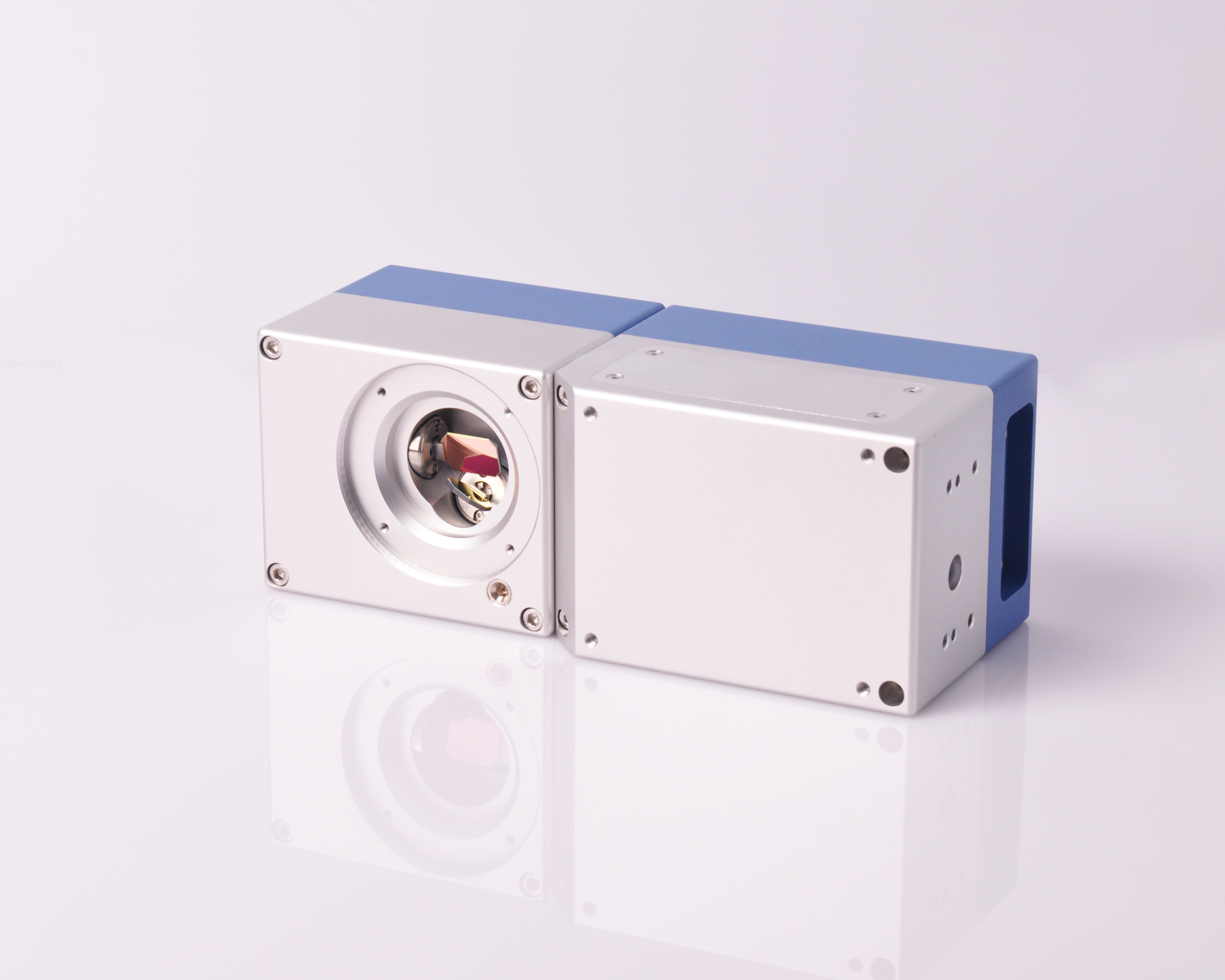

3D Post-Scanning System

  • Including the galvanometer, dynamic focus unit, controller, software.
  • XY2-100 universal digital interface.
  • Customization according to application.
  • Provide 1064nm, 10.6um, 355nm, 532nm, variety of wavelength applications.
  • High marking speed, small focus point, high peak energy.
  • The application of inclined plane, curved surface, high and low surface or
  • other irregular three-dimensional marking.
  • Sapphire, ordinary glass and other brittle materials cutting, micro hole drilling applications.
  • Independent intellectual property rights, can be exported worldwide



     Datasheet Download

     Manual Download





This solution includes a 2D galvoscanner system Quantum Series, a dynamic focus unit Proton series, F - theta lens and a galvo system controller. It uses the Post-scanning technology, the working volume is about 150*150*45 ( with the 210mm F-theta lens). The advantage of this system: marking fast, small focus point, low power loss.
